Consolidation on lung ultrasound: detection and sonographic features

Lung consolidation occurs when healthy lung tissue is replaced by substances such as pus, blood, fluid, or tissue, leading to swelling of the normal lung tissues. This occurs due to the buildup of inflammatory fluid in the air sacs (alveoli) and nearby ducts.

Lung US versus chest X-ray in diagnosing lung consolidations

According to a systematic review by Hansell et al. in 2021, lung ultrasound demonstrated a sensitivity of 92% for diagnosing consolidations. In contrast, chest X-ray only showed a sensitivity of 53% for consolidations. Studies comparing lung ultrasound (LUS) to other tools such as CT scans, chest X-rays (CXR), and lung auscultation indicate that it is a superior alternative to traditional imaging due to its non-invasive nature, repeatability, accuracy, and lack of radiation exposure for patients and staff. Moreover, ultrasound equipment can be used at the bedside, especially in sick patients, who cannot be transported to the radiology department for other imaging.

Differential diagnosis of lung consolidations

There is a vast differential diagnosis of lung consolidations. One approach is to divide conditions into acute versus chronic causes of consolidations. Below, we focus on the most common causes of consolidations:

Acute:

• Pneumonia
• Atelectasis
• Hemorrhage
• Pulmonary contusion
• Pulmonary infarct
• Drug reaction

Chronic:

• Pneumonia
• Atelectasis
• Neoplasm
• Interstitial lung disease

How to detect a consolidation using lung ultrasound

Here are some general steps that healthcare professionals may follow to detect consolidations using lung ultrasound:

Patient positioning

Patients are most commonly assessed in a supine or semi-recumbent position, which allows for evaluation of the anterior and lateral lung fields. If the patient is able to sit upright, this will also allow for assessment of the posterior aspects of the lung.

Probe selection

A low frequency probe is ideal as it allows for adequate penetration into the chest and an appropriate depth. Thus, one can use either the curvilinear or phased-array probe. While the curvilinear probe has the advantage of providing an image of multiple rib spaces, the phased array probe allows the user to get in between the ribs to better visualize lung parenchyma.

Landmarks for scanning

Typically, a lung ultrasound examines at least four lung fields: upper and lower regions of each lung on both the right and left lung. However, there are multiple protocols described in the literature to thoroughly assess the lungs. It is crucial to assess the most posterior parts of the lungs as these are where consolidations often form, particularly in sick patients. A limited examination may overlook smaller, more focal consolidations or other important findings.

We describe a 4 point model below to assess for consolidations. The probe marker should always be pointing toward the patient’s head.

To examine the most anterior upper lung field, position the probe on the front chest near the midclavicular line, between the 2nd and 3rd intercostal space.

For the lateral lower lung field, place the probe at the anterior axillary line along the costophrenic angle.

Finally, for the most posterior lung field, which is often referred to as the PLAPS point (posterior and/or lateral alveolar and/or pleural syndrome), place the probe along the costophrenic angle as close to the spine as possible. This is challenging in patients lying down and thus, they may need to be repositioned.

Search for normal lung patterns

To identify whether the lungs are normal, look for the following features:

Lung Sliding:

• This involves a shimmering motion of the bright pleural line caused by the visceral pleura moving against the parietal pleura.

A Lines:

• These are a type of artifact produced when sound waves bounce between the highly reflective pleural line and the ultrasound transducer. They create repetitive horizontal lines equidistant from the pleural line. The presence of A lines demonstrates air-filled lung. Refer to our post on lung artifacts here.

The absence of lung sliding and A lines indicates lung pathology. The next step is to search for features of lung consolidation.

What are some features of lung consolidation on ultrasound?

Despite being caused by a variety of conditions, most lung consolidations show similar features on LUS as described below:

Hypoechoic liver-like texture

Consolidated lung appears dark due to its increased density and in some instances, may take on a similar texture to the liver. This is often referred to as “hepatization of the lung.”

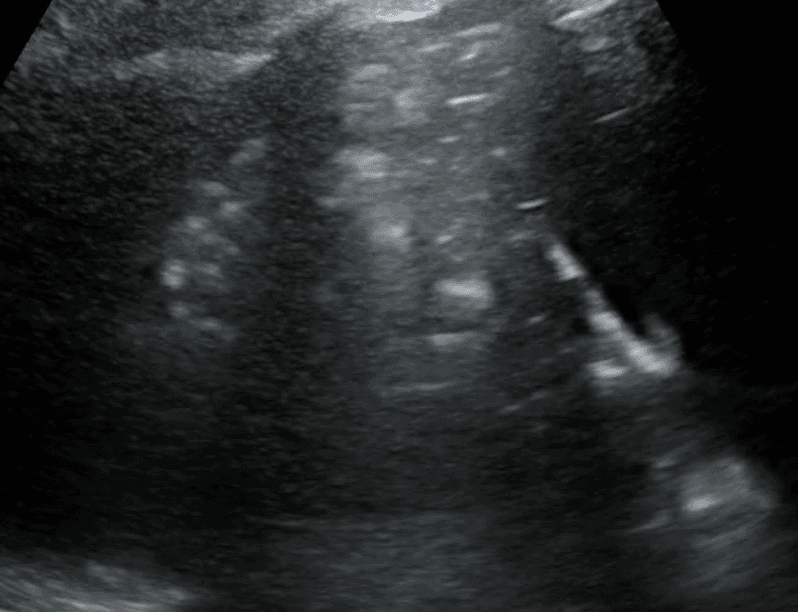

Air bronchograms

Air bronchograms are air-filled bronchi that remain patent within the surrounding consolidated lung, They appear as hyperechoic structures within the hypoechoic consolidation. They may resemble multiple millimeter-long, lentil-shaped structures or branching tubular structures.

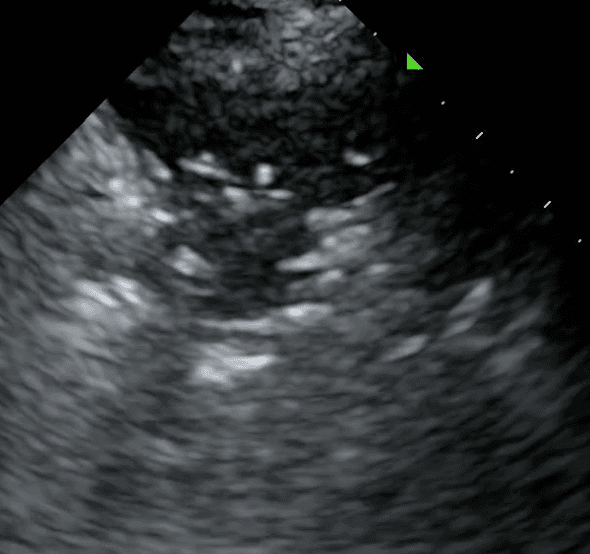

Shred sign

A shred sign represents the boundary between consolidated (abnormal) and aerated (normal) lung tissue. It appears as an irregular (shredded/fractal) line next to normal lung.

Conclusion

In summary, a lung consolidation is an abnormal lung that is characterized by the replacement of healthy lung tissue with substances such as pus, blood, fluid or cells. Lung ultrasound provides a rapid, non-invasive, repeatable and radiation-free method of diagnosing lung consolidations. Proper patient position, probe selection, and thorough scanning of multiple lung fields enhances diagnostic precision. Recognizing normal lung patterns and identifying the specific abnormalities outlined above are crucial.
